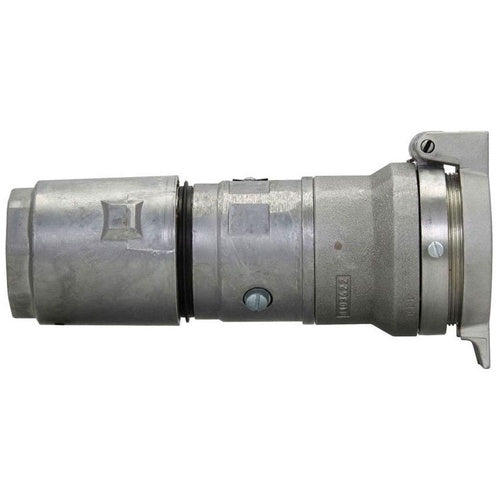

Crouse-Hinds APR3563 4W-5P Receptacle

Overview

Crouse-Hinds APR3563 4W-5P Receptacle

Product Specifications

• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Finished Copper Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 0.875 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 30 Ampere Current Rating; 5 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Watertight, Moisture Resistant; 2, Shell, Extra Pole Grounding Style; ARKTITE[R] Brand; Size 8-1/4 Inch L X 2-9/16 Inch W; Enclosure NEMA 4; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; APR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Connector
• UPC 12 Digit: 782274055008
• SKU Name: crsh apr3563

Resources

• Manufacturer Spec Sheet
