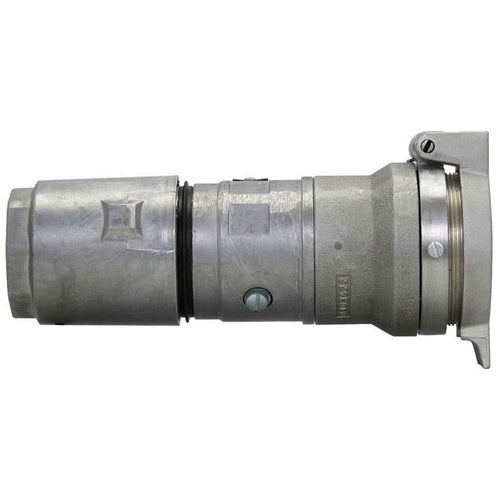

Crouse-Hinds APR6355 3W-3P Receptacle

Overview

Crouse-Hinds APR6355 3W-3P Receptacle

Product Specifications

• Catalog Description: 60 AMP 3 WIRE 3 POLE ARKTITE CONNECT .50 TO 1.45
• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Finished Copper Free Aluminum Material; 0.87 Inch min. Cable Outer Diameter; 1.37 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 60 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Watertight, Moisture Resistant; 1, Shell Grounding Style; ARKTITE[R] Brand; Size 8-1/2 Inch L X 3-5/8 Inch W; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; APR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121402
• UPC 12 Digit: 782274055404
• SKU Name: crsh apr6355

Resources

• Manufacturer Spec Sheet
