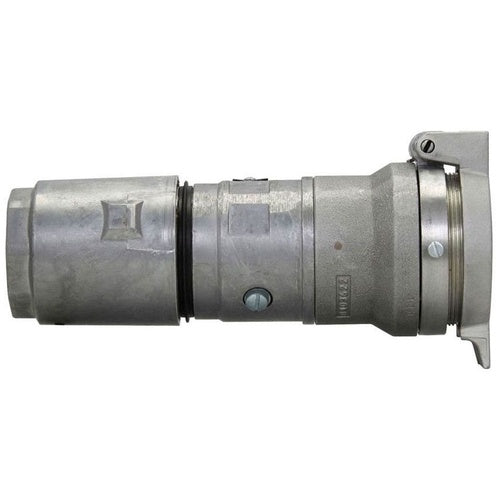

Crouse-Hinds APR6567 4W5P 60A 600V Connector

Overview

Crouse-Hinds APR6567 4W5P 60A 600V Connector

Product Specifications

• Catalog Description: 60 AMP 4 WIRE 5 POLE CONNECT .75 TO 1.45
• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Finished Copper Free Aluminum Material; 1.38 Inch min. Cable Outer Diameter; 1.88 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 60 Ampere Current Rating; 5 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Watertight, Moisture Resistant; 2, Shell, Extra Pole Grounding Style; ARKTITE[R] Brand; Size 9 Inch L X 4-7/16 Inch W; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; APR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121402
• UPC 12 Digit: 782274934945
• SKU Name: crsh apr6567

Resources

• Manufacturer Spec Sheet
