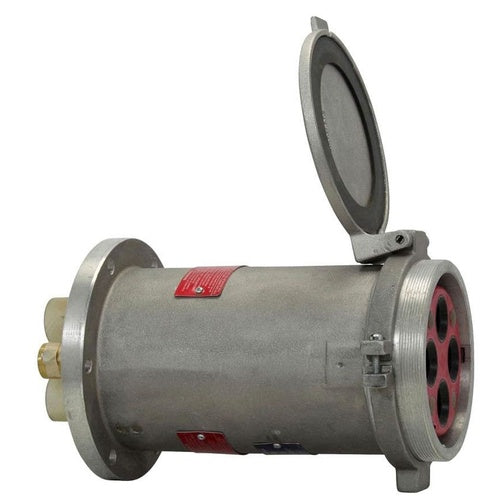

Crouse-Hinds AR4042 3W-4P Receptacle Housing

Overview

Crouse-Hinds AR4042 3W-4P Receptacle Housing

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE AR RECEPTACLE, 400A, THREE-WIRE, FOUR-POLE, 50-400 HZ, STYLE 2, COPPER-FREE ALUMINUM, SPRING DOOR, 600 VAC/250 VDC, 0.84"
• Full Technical Description: Polarized Type; High Impact Strength Natural Finished Copper Free Aluminum Material; 3 Wire(S); Industrial Grade; UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 400 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant, Weatherproof; Spring Door; 2, Shell, Extra Pole Grounding Style; ARKTITE[R] Brand; Screw Size 3/8 Inch-16 TPI; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; AR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 782274066202
• SKU Name: crsh ar4042

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
