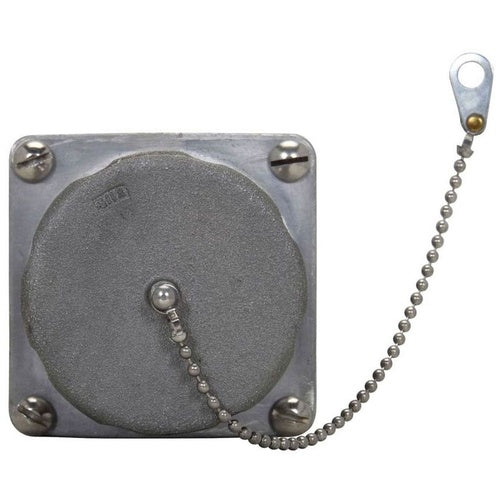

Crouse-Hinds AR657 5W-5P Receptacle Housing

Overview

Crouse-Hinds AR657 5W-5P Receptacle Housing

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE AR RECEPTACLE, 60A, FIVE-WIRE, FIVE-POLE, 50-400 HZ, STYLE 1, COPPER-FREE ALUMINUM, THREADED CAP, 600 VAC/250 VDC
• Full Technical Description: Polarized Type; High Impact Strength Natural Finished Copper Free Aluminum Material; 5 Wire(S); Industrial Grade; UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 60 Ampere Current Rating; 5 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Watertight, Moisture Resistant; Threaded Cap; 1, Shell Grounding Style; ARKTITE[R] Brand; Size 4-1/4 Inch L X 4-1/4 Inch W X 4-1/2 Inch H; Screw Size 5/16 Inch-18 TPI; Enclosure NEMA 4; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; AR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 782274063249
• SKU Name: crsh ar657
