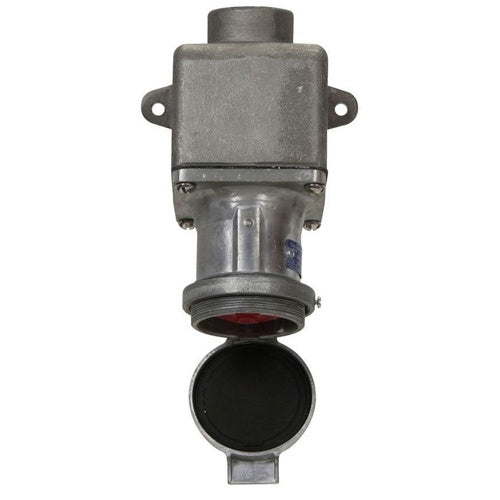

Crouse-Hinds ARE3423 Receptacle Assembly

Overview

Crouse-Hinds ARE3423 Receptacle Assembly

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE ARE RECEPTACLE ASSEMBLY, 30A, THREE-WIRE, FOUR-POLE, 50-400 HZ, STYLE 2, COPPER-FREE ALUMINUM,SPRING DOOR,1",600 VAC/250 VDC
• Full Technical Description: Polarized Type; Natural Cast Aluminum (Back Box), Natural Copper-Free Aluminum (Receptacle) Material; 3 Wire(S); 600 Volt AC at 50 to 400 Hertz, 250 Volt DC Voltage Rating; 30 Amp Current Rating; 4 Pole(S); Corrosion Resistant, Dirt Tight, Dust Tight, Moisture Resistant, Weatherproof; (1) 1 Inch Back Hub Type; Spring Door; 2, Shell, Extra Pole Grounding Style; ARKTITE[R] Brand; Overall Dimension 5-7/16 Inch Width X 7-3/16 Inch Height; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; Approval UL 1682/1686, CSA C22.2; ARE Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 782274034959
• SKU Name: crsh are3423
