Crouse-Hinds ARE3523 4W4P 30A Receptacle Assembly

Overview

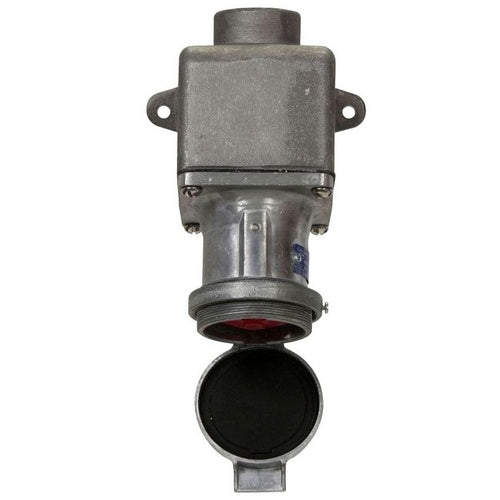

Crouse-Hinds ARE3523 4W4P 30A Receptacle Assembly

Product Specifications

• Catalog Description: 30 AMP 4 WIRE 4 POLE 600 VOLT RECEPTACLE ASSEMBLY BACK BOX SPDR 1
• Full Technical Description: Polarized Type; Natural Finished Cast Aluminum (Back Box), Natural Finished Copper Free Aluminum (Receptacle) Material; 4 Wire(S); 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 30 Ampere Current Rating; 5 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant, Weatherproof; (1) 1 Inch Back Hub Type; Spring Door; 2, Shell, Extra Pole Grounding Style; ARKTITE[R] Brand; Approval UL 1682/1686, CSA C22.2; Size 4-7/8 Inch W X 6-7/8 Inch H; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; ARE Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 782274040622
• SKU Name: crsh are3523

Resources

• Manufacturer Spec Sheet
