Crouse-Hinds AREA10415 Receptacle Assembly

Overview

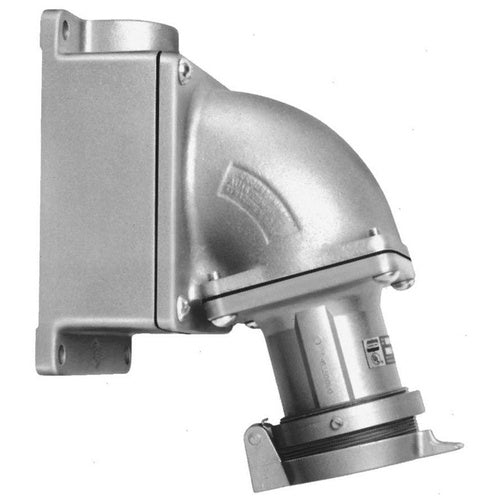

Crouse-Hinds AREA10415 Receptacle Assembly

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE AREA RECEPTACLE ASSEMBLY, 100A, FOUR-WIRE, FOUR-POLE, 50-400 HZ, STYLE 1, COPPER-FREE ALUMINUM, SPRING DOOR, 1-1/2", 600 VAC/250 VDC
• Full Technical Description: Polarized, Angled Type; Natural Finished Cast Aluminum (Back Box), Natural Finished Copper Free Aluminum (Receptacle) Material; 4 Wire(S); 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 100 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant, Weatherproof; (1) 1-1/2 Inch Top Hub Type; Spring Door; 1, Shell Grounding Style; ARKTITE[R] Brand; Approval UL 1682/1686, CSA C22.2; Size 9-7/8 Inch W X 11-9/16 Inch H; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; AREA Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 782274041025
• SKU Name: crsh area10415

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
