Crouse-Hinds AREA10416 Receptacle Assembly

Overview

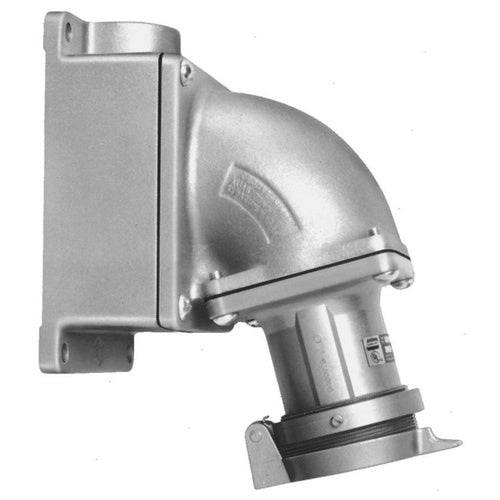

Crouse-Hinds AREA10416 Receptacle Assembly

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE AREA RECEPTACLE ASSEMBLY, 100A, FOUR-WIRE, FOUR-POLE, 50-400 HZ, STYLE 1, COPPER-FREE ALUMINUM, SPRING DOOR, 2", 600 VAC/250 VDC
• Full Technical Description: Polarized, Angled Type; Natural Cast Aluminum (Back Box), Natural Copper-Free Aluminum (Receptacle) Material; 4 Wire(S); 600 Volt AC at 50 to 400 Hertz, 250 Volt DC Voltage Rating; 100 Amp Current Rating; 4 Pole(S); Corrosion Resistant, Dirt Tight, Dust Tight, Moisture Resistant, Weatherproof; (1) 2 Inch Top Hub Type; Spring Door; 1, Shell Grounding Style; ARKTITE[R] Brand; Overall Dimension 9-7/8 Inch Width X 11-9/16 Inch Height; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; Approval UL 1682/1686, CSA C22.2; AREA Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 782274041032
• SKU Name: crsh area10416

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
