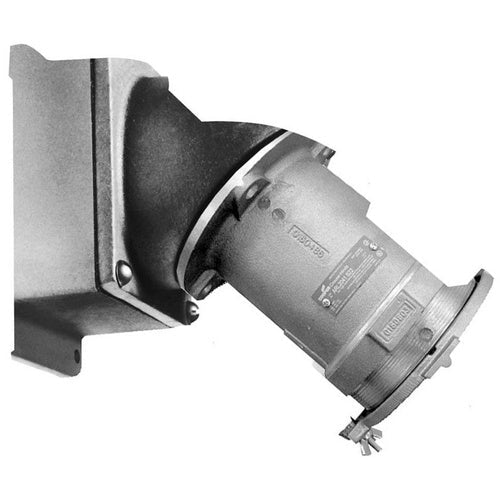

Crouse-Hinds AREA204126 4W-4P 200A Receptacle

Overview

Crouse-Hinds AREA204126 4W-4P 200A Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE AREA RECEPTACLE ASSEMBLY, 200A, FOUR-WIRE, FOUR-POLE, 50-400 HZ, STYLE 1, COPPER-FREE ALUMINUM, SPRING DOOR, CRIMP/SOLDER, 2", 600 VAC/250 VDC, 0.75"
• Full Technical Description: Polarized, Angled Type; Natural Finished Cast Aluminum (Back Box), Natural Finished Copper Free Aluminum (Receptacle) Material; 4 Wire(S); 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 200 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant, Weatherproof; (1) 2 Inch Top Hub Type; Spring Door; 1, Shell Grounding Style; ARKTITE[R] Brand; Approval UL 1682/1686, CSA C22.2; Size 15-5/8 Inch W X 14-7/16 Inch H; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; AREA Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 782274041728
• SKU Name: crsh area204126

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
