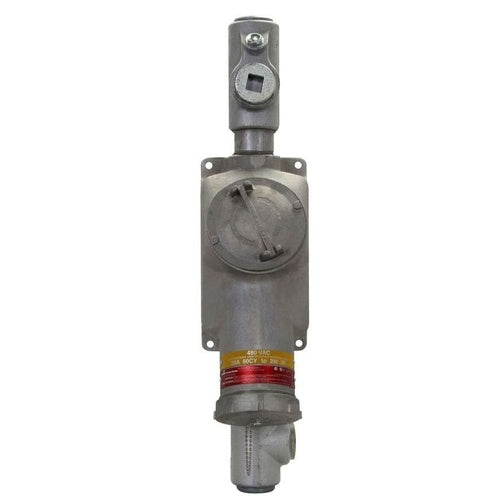

Crouse-Hinds BHRC10485D 100A-3W Receptacle

Overview

Crouse-Hinds BHRC10485D 100A-3W Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES BHR INTERLOCKED RECEPTACLE WITH SWITCH, 100A, THROUGH FEED, THREE-WIRE, FOUR-POLE, BRASS CONTACTS, STYLE 2, COPPER-FREE ALUMINUM, THREADED CAP, FACTORY SEALED, 1-1/2", 480 VAC
• Full Technical Description: Interlocked Type; Natural Copper Free Aluminum Material; 3 Wire(S); 480 VAC at 60 to 400 Hz Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/4/7B/7C/7D/9F/7G/12 Enclosure; 100 Ampere Current Rating; 4 Pole(S); Dust-Ignitionproof, Explosionproof, Raintight; 1-1/2 Inch Hub Type; Threaded Cap; Extra Pole Grounding Style; Approval UL 1010; Application Wet Location, Indoor/Outdoor; BHR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 782274043302
• SKU Name: crsh bhrc10485d

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
