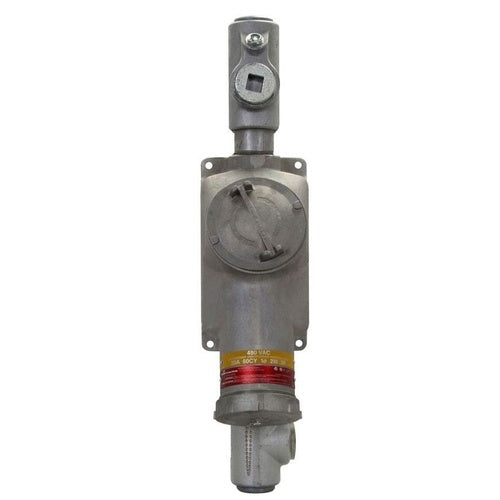

Crouse-Hinds BHRC6485D 60A 4P-3W Receptacle

Overview

Crouse-Hinds BHRC6485D 60A 4P-3W Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES BHR INTERLOCKED RECEPTACLE WITH SWITCH, 60A, THROUGH FEED, THREE-WIRE, FOUR-POLE, BRASS CONTACTS, STYLE 2, COPPER-FREE ALUMINUM, THREADED CAP, FACTORY SEALED, 1-1/2", 480 VAC
• Full Technical Description: Dead-Front, Interlocked Type; Copper-Free Aluminum (Housing), Malleable Iron (Seal), High Impact Glass Filled Phenolic (Insulation) Material; 3 Wire(S); 480 Volt AC 400 Hertz Voltage Rating; Class I Div 1 and 2 Group B/C/D, Class II Div 1 and 2 Group F/G, Class III, NEMA 3/4/7BCD/9FG/12 Enclosure; 60 Amp Current Rating; 4 Pole(S); Dust-Ignitionproof, Explosionproof, Raintight; 1-1/2 Inch Top Feed/Bottom Feed/Through Feed Hub Type; Threaded Cap; Extra Pole Grounding Style; Application Wet Location
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 782274043418
• SKU Name: crsh bhrc6485d

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
