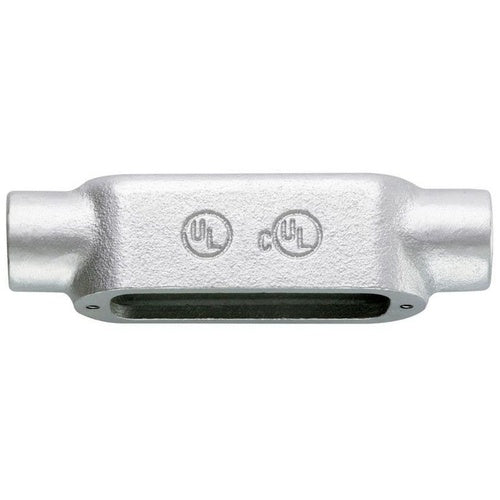

Crouse-Hinds C400M 4" Malleable C-Type Conduit Body

Overview

Crouse-Hinds C400M 4" Malleable C-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 5 CONDUIT OUTLET BODY, MALLEABLE IRON, C SHAPE, BUILT-IN ROLLERS, 4"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Malleable Iron (Body), Natural Finished Neoprene (Gasket), Stainless Steel (Screw) Material; 18.13 Inch L X 4.88 Inch W X 5.56 Inch H Size; Rigid Conduit Used on; 4 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL 514B, CUL, CSA C22.2 Approval; Sheet Steel, Screw-on Cover Type; Straight Hub Location; Form 5 Form Type; Side Access Opening; CONDULET[R] Brand; Applicable Standard Federal Specification WC-586D
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274756424
• SKU Name: crsh c400m

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
