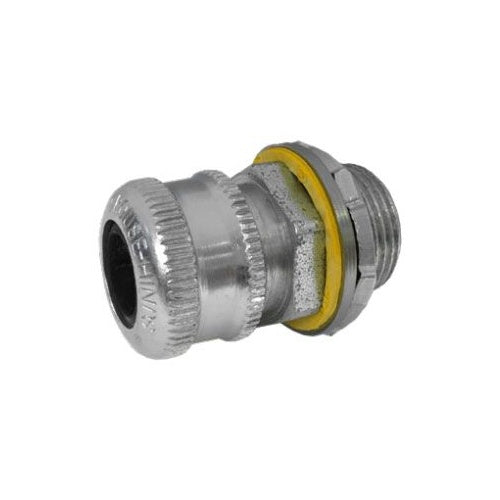

Crouse-Hinds CGB5915-SG 1-1/2" Cord & Cable Fitting

Overview

Crouse-Hinds CGB5915-SG 1-1/2" Cord & Cable Fitting

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CGB CABLE GLAND, CABLE RANGE MIN/MAX: 1.625-1.875", NON-ARMOURED AND TRAY CABLE, NON-ARMOURED, STEEL, GENERAL PURPOSE, SEALING GASKET AND LOCKNUT, 1-1/2" NPT
• Full Technical Description: Straight Type; Electrogalvanized Aluminum Acrylic Painted Iron Alloy Material; 2.63 Inch; Non-Armored, Tray Cable Type; UL (Canada and Us) Approval; NEMA 3R Enclosure; 1-1/2 Inch Thread Size; -25 to 40 Deg C Operating Temperature; Watertight; 1.63 to 1.88 Inch Cable Outer Diameter; Applicable Standard NEC 501.10; Thread Type MNPT; Thread Length 0.81 Inch; Outer Diameter 3 Inch; Application Hazardous Location; Includes Sealing Gasket; CGB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Cable Gland
• Unspsc: 39121311
• UPC 12 Digit: 782274095509
• SKU Name: crsh cgb5915sg

Resources

• Product Brochure
• Manufacturer Spec Sheet
