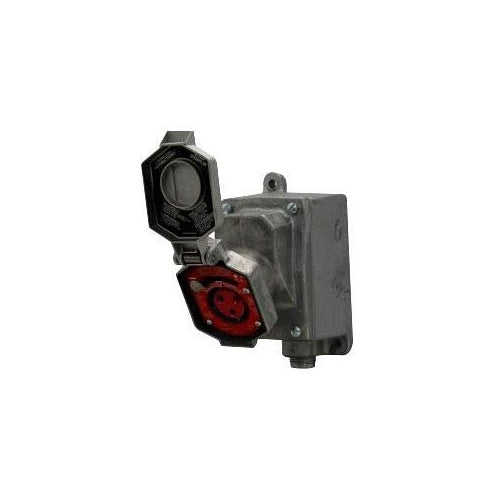

Crouse-Hinds CPS152-102 2-Gang Receptacle Assembly

Overview

Crouse-Hinds CPS152-102 2-Gang Receptacle Assembly

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE CPS RECEPTACLE ASSEMBLY, 20A, DEAD END, TWO-WIRE, THREE-POLE, BRASS CONTACTS, 60 HZ, STYLE 2, 1 HP, COPPER-FREE ALUM, TWO-GANG, FACTORY SEALED, 1/2", DELAYED ACTION CIRCUIT BREAKING, 125-250 VAC/18 VDC
• Full Technical Description: Dead End Type; 1/2 Inch Hub Size; 2 Wire(S); UL 1203, CSA C22.2 Approval; 125 to 250 VAC at 60 Hz, 18 VDC Voltage Rating; Class I Div 1 and 2 Group C D Enclosure; 20 Ampere Current Rating; Hinged Cover Type; 1 HP Power Rating; 3 Pole(S); 2-Gang Box Type; Cpp Mating Plug; ARKTITE[R] Brand; Cable Diameter 0.312 to 0.625 Inch; Application Wet Location; CPS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 782274181103
• SKU Name: crsh cps152102

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
