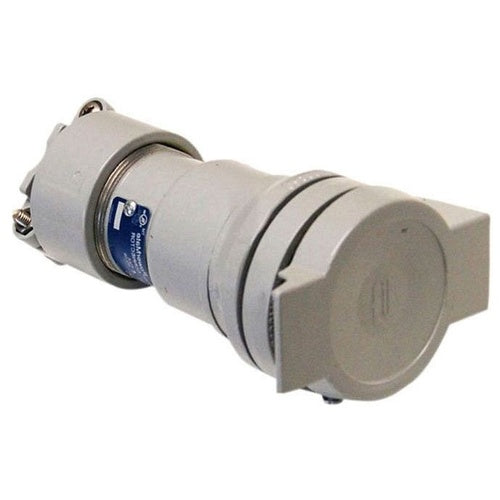

Crouse-Hinds CRC3044BC 4P 4Wr 30A Cord Connector

Overview

Crouse-Hinds CRC3044BC 4P 4Wr 30A Cord Connector

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES POWERMATE CRC CONNECTOR, 30A, 0.390-1.375", FOUR-WIRE, FOUR-POLE, STYLE 1, COPPER-FREE ALUMINUM, 600 VAC/250 VDC
• Full Technical Description: Shaker, Agitator, Lighting Circuit, Mud Pump, Motor Type; Epoxy Powder Coated Copper Free Aluminum Material; 0.39 Inch min. Cable Outer Diameter; 1.375 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 30 Ampere Current Rating; 4 Pole(S); Watertight; 1, Shell Grounding Style; POWERMATE[TM] Brand; Size 6-3/5 Inch L X 2-9/16 Inch W; Enclosure NEMA 4X; CRC Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL PRODUCTS
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121404
• UPC 12 Digit: 662276276499
• SKU Name: crsh crc3044bc

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
