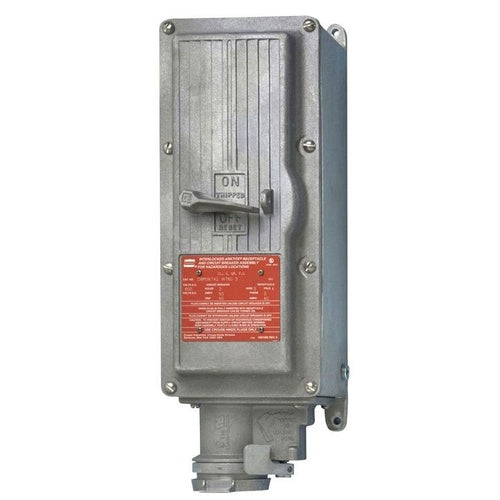

Crouse-Hinds DBR56742-WT60-3 3W4P 60A Receptacle

Overview

Crouse-Hinds DBR56742-WT60-3 3W4P 60A Receptacle

Product Specifications

• Catalog Description: 60A 3W4P ARKTE INTRLCK RCPT SPDR WESTHOUSE BRKR 1 1/2
• Full Technical Description: 7-1/4 Inch W X 8-1/8 Inch D X 22-3/4 Inch H Size; 1-1/2 Inch Hub Size; Copper Free Aluminum Enclosure Material; 1 Hub(S); UL 698/1010 Approval; Class II Div 1 and 2 Group F G, Class III, NEMA 3/9FG/12 Enclosure; Dust-Ignitionproof, Watertight; Natural Color Code; Natural Enclosure Finish; Top Hub Location; 3 Breaker Pole(S); 600 VAC Breaker Voltage Rating; 60 Ampere Breaker Current Rating; Apj/Npj Mating Plug; 60 Ampere Receptacle Current Rating; 4-Pole 3-Wire Receptacle Configuration; ARKTITE[R] Brand; DBR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle with Circuit Breaker
• Unspsc: 39121406
• UPC 12 Digit: 782274278254
• SKU Name: crsh dbr56742wt603

Resources

• Manufacturer Spec Sheet
