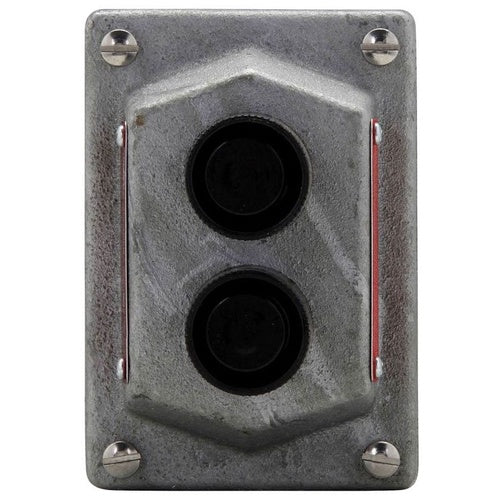

Crouse-Hinds DSD921-S153 Pushbutton Control Station 2 Switch

Overview

Crouse-Hinds DSD921-S153 Pushbutton Control Station 2 Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES DSD FRONT OPERATED PUSHBUTTON COVER AND DEVICE SUB-ASSEMBLY, 10A, BLACK, FERALOY IRON ALLOY, 2 CIRCUITS UNIVERSAL, 2 BUTTONS, LOCKOUT PROVISION ON FRONT OPERATED PUSHBUTTON COVER, FACTORY SEALED, 600 VAC
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy. Iron Alloy (Us), Natural Copper Free Aluminum (Canada) Material; Eds/Efs Series Back Box Used on; 2NO-2NC Contact Configuration; 600 VAC Contact Rating; UL 698, UL 894, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure; Dust Ignition Proof, Rain Tight, Wet Location; 2 Circuit(S); 2 Pushbutton(S); Crouse-Hinds. Brand; Legend Stop/Off; Lockout Provision; DSD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pushbutton Cover
• Unspsc: 39122216
• UPC 12 Digit: 782274776200
• SKU Name: crsh dsd921s153

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
