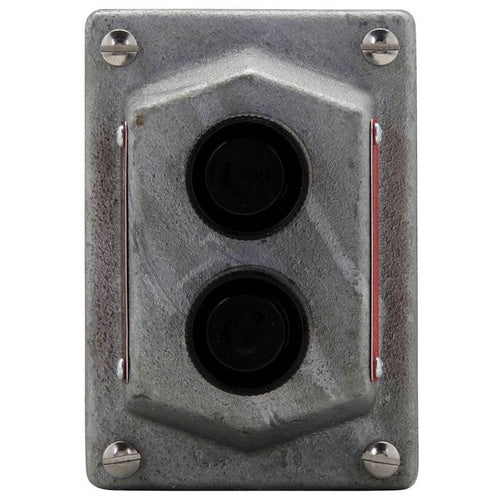

Crouse-Hinds DSD921SA Pushbutton Cover Assembly Csa Ap

Overview

Crouse-Hinds DSD921SA Pushbutton Cover Assembly Csa Ap

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES DSD FRONT OPERATED PUSHBUTTON COVER AND DEVICE SUB-ASSEMBLY, 10A, BLACK, COPPER-FREE ALUMINUM, 2 CIRCUITS UNIVERSAL, 2 BUTTONS, FACTORY SEALED, 600 VAC
• Full Technical Description: Natural Copper Free Aluminum Material; Edscm Series Modular Control Device Body Used on; Universal Contact Configuration; UL 698, UL 894, CSA C22.2 Approval; NEMA 3/7BCD/9EFG, Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III Enclosure; Dust Ignition Proof, Rain Tight; 1) Pilot Light, (1) Pushbutton Device Type; 2 Circuit(S); DSD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Combination Cover
• Unspsc: 39122216
• UPC 12 Digit: 782274576237
• SKU Name: crsh dsd921sa

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
