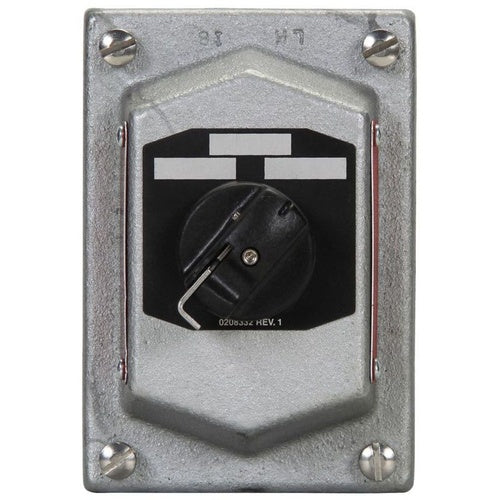

Crouse-Hinds DSD925 Pushbutton Switch Iron U.S.

Overview

Crouse-Hinds DSD925 Pushbutton Switch Iron U.S.

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES DSD SELECTOR SWITCH COVER AND DEVICE SUB-ASSEMBLY, 10A, FERALOY IRON ALLOY, 3 POSITION, 2 CIRCUIT, FACTORY SEALED, MAINTAINED CONTACT, 600 VAC
• Full Technical Description: Electrogalvanized and Aluminum Acrylic Painted Feraloy Iron Alloy Material; Eds/Efs Series Control Station Used on; 4NO-2NC Contact Configuration; Maintained Operation Type; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure; Explosionproof, Dust Ignitionproof, Rain Tight; 3 Position(S); 2 Circuit(S); Application Wet Location; DSD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Selector Switch Cover
• Unspsc: 39122217
• UPC 12 Digit: 782274776408
• SKU Name: crsh dsd925
