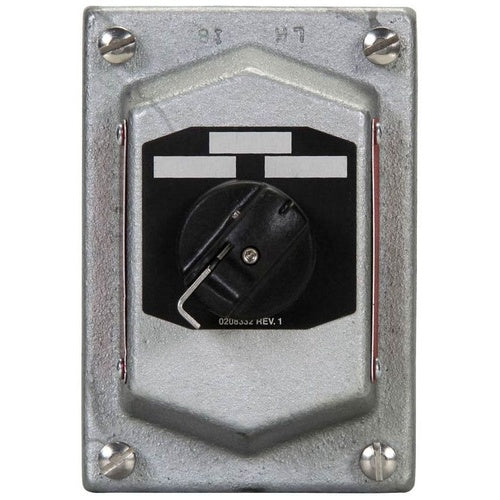

Crouse-Hinds DSD927 4-Ckt Selector-Switch

Overview

Crouse-Hinds DSD927 4-Ckt Selector-Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES DSD SELECTOR SWITCH COVER AND DEVICE SUB-ASSEMBLY, 10A, FERALOY IRON ALLOY, 3 POSITION, 4 CIRCUIT, A1, A2, B1, B2, FACTORY SEALED, MAINTAINED CONTACT, 600 VAC
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy Material; Eds/Efs Series Control Station Used on; 6NO-6NC Contact Configuration; Maintained Operation Type; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure; Explosionproof, Dust-Ignitionproof, Raintight; 3 Position(S); 4 Circuit(S); Application Wet Location; Rocker Handle Material 6/6 Nylon
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Selector Switch Cover
• Unspsc: 39122217
• UPC 12 Digit: 782274776521
• SKU Name: crsh dsd927

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
