Crouse-Hinds DSD948-J1-T2 Sub Assembly

Overview

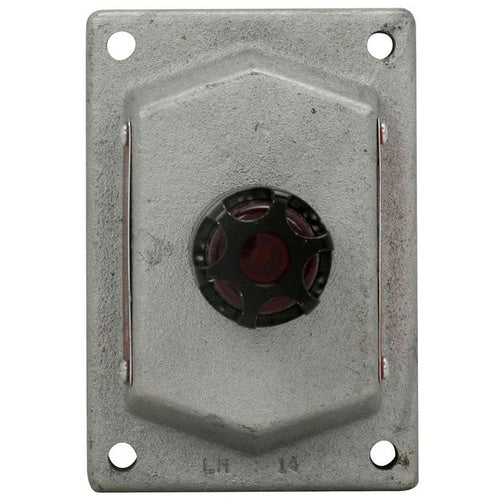

Crouse-Hinds DSD948-J1-T2 Sub Assembly

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES DSD PILOT LIGHT COVER AND DEVICE SUB-ASSEMBLY, RED, FERALOY IRON ALLOY, TRANSFORMER, FACTORY SEALED, ONE PILOT LIGHT, 220-240 VAC
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy Material; Eds/Efs Series Control Station Used on; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure; Incandescent Lamp Type; Dust-Ignitionproof, Explosionproof, Raintight; 220/110 V at 50/60 Hz Transformer Lamp Voltage; Red Lens Color; 1 Light(S); Application Wet Location
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pilot Light Cover
• Unspsc: 39121302
• UPC 12 Digit: 782274301839
• SKU Name: crsh dsd948j1t2

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
