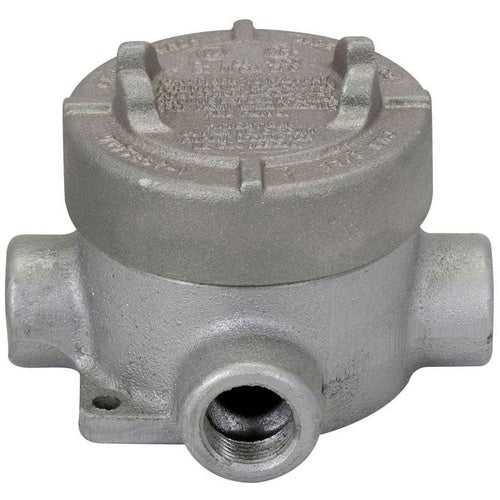

Crouse-Hinds EAJT36-SA Conduit Outlet Box

Overview

Crouse-Hinds EAJT36-SA Conduit Outlet Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET EAJ CONDUIT OUTLET BOX WITH COVER, 3-3/16" COVER OPENING DIAMETER, COPPER-FREE ALUMINUM, T SHAPE, 1"
• Full Technical Description: Natural Finished Copper Free Aluminum Material; Round Shape; 1 Inch Hub Size; 3 Hub(S); UL 1203, CSA C22.2 Approval; Pad Mounting; Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7A/7B/7C/7D/9E/9F/9G Enclosure; Overlapping Threaded Cover Type; T Style; (3) Side Hub Location; External Hub Type; 3-3/16 Inch Cover Opening Diameter; CONDULET[R] Brand; Applicable Standard CEC, NEC; Constructional Feature Explosionproof, Dust-Ignitionproof, Raintight; Application Wet Location; EAJT Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121309
• UPC 12 Digit: 782274944036
• SKU Name: crsh eajt36sa

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
