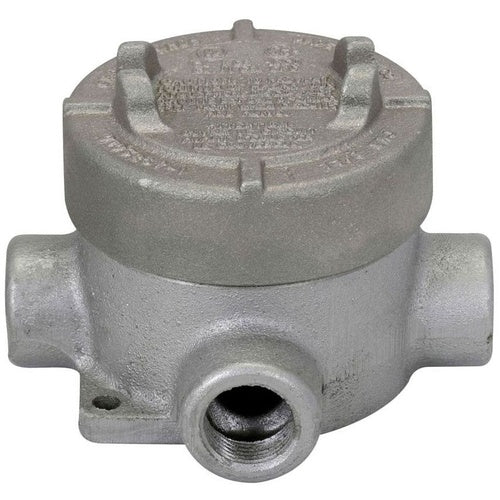

Crouse-Hinds EAJT59 1-1/2" T-Type Conduit Body

Overview

Crouse-Hinds EAJT59 1-1/2" T-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET EAJ CONDUIT OUTLET BOX WITH COVER, 5" COVER OPENING DIAMETER, FERALOY IRON ALLOY, T SHAPE, 1-1/2"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Natural Copper-Free Aluminum (Cover) Material; Round Shape; 1-1/2 Inch Hub Size; 3 Hub(S); UL 1203, CSA C22.2 Approval; (4) Pad Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7A/7B/7C/7D/9E/9F/9G Enclosure; Overlapping Threaded Cover Type; T Style; (3) Side Hub Location; Taper Threaded Hub Type; 5 Inch Cover Opening Diameter; CONDULET[R] Brand; Constructional Feature Explosionproof, Dust-Ignitionproof, Rain Tight; Includes Cover, Green Grounding Screw; Application Wet Location, Hazardous/Classified Location; Applicable Standard Nec/Cec; EAJ Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121309
• UPC 12 Digit: 782274943671
• SKU Name: crsh eajt59

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
