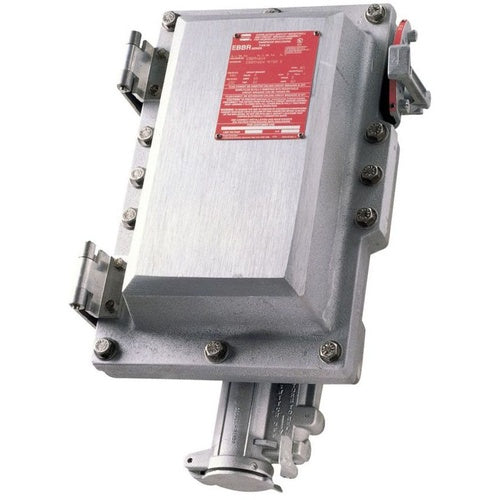

Crouse-Hinds EBBRB604-WT100-3 3P100 Circuit Breaker & Receptacle

Overview

Crouse-Hinds EBBRB604-WT100-3 3P100 Circuit Breaker & Receptacle

Product Specifications

• Full Technical Description: 14.06 Inch W X 10.25 Inch D X 31.45 Inch H Size; 1-1/2 Inch Hub Size; Copper Free Aluminum Enclosure Material; UL 1203 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/7B/7C/7D/9F/9G/12 Enclosure; Explosion Proof, Dust Ignition Proof, Rain Tight; Natural Enclosure Finish; Extra Pole Grounding Style; 3 Breaker Pole(S); 480 Vac/250 VDC Breaker Voltage Rating; 100 Ampere Breaker Current Rating; Apj, Cph, Npj Mating Plug; 60 Ampere Receptacle Current Rating; 4 Pole 3 Wire Receptacle Configuration; CROUSE-HINDS[R] Brand; Applicable Standard NEC; EBBR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin And Sleeve Receptacle With Circuit Breaker
• UPC 12 Digit: 782274418018
• SKU Name: crsh ebbrb604wt1003

Resources

• Manufacturer Spec Sheet
