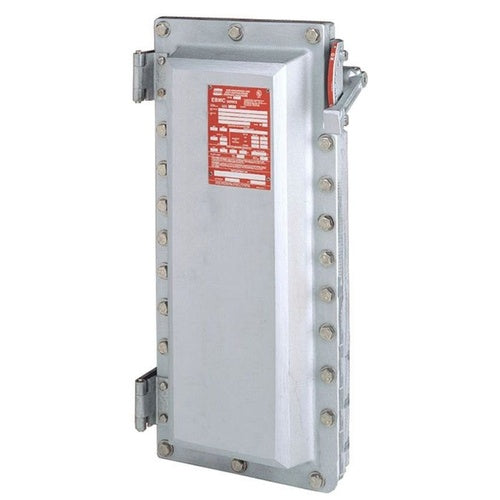

Crouse-Hinds EBMBA-WT15EHD34 Circuit Breaker Encloure

Overview

Crouse-Hinds EBMBA-WT15EHD34 Circuit Breaker Encloure

Product Specifications

• Full Technical Description: Bolted Enclosure Type; Copper Free Aluminum Enclosure Material; 480 Vac/250 VDC Voltage Rating; NEMA 3/3R/4/7B/7C/7D/9E/9F/9G/12, Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 18000 Ampere at 240 VAC, 14000 Ampere at 480 VAC Interrupting Rating; 15 Ampere Current Rating; 3 Pole(S); Dust Ignition Proof, Explosion Proof, Rain Tight, Water Tight; Feed Through Hub Location; Ehd, Westinghouse Breaker Type; Non Interchangeable, Thermal Magnetic Trip Type; Copper Free Aluminum Handle, Stainless Steel Shaft Shaft/Handle Material; EBM[T], CROUSE-HINDS[R] Brand; Applicable Standard Nema/Eemac, Nec/Cec; EBMB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Enclosed Circuit Breaker
• UPC 12 Digit: 782274598628
• SKU Name: crsh ebmbawt15ehd34

Resources

• Manufacturer Spec Sheet
