Crouse-Hinds EBMBK-WT400KD36 Circuit Breaker Encloure

Overview

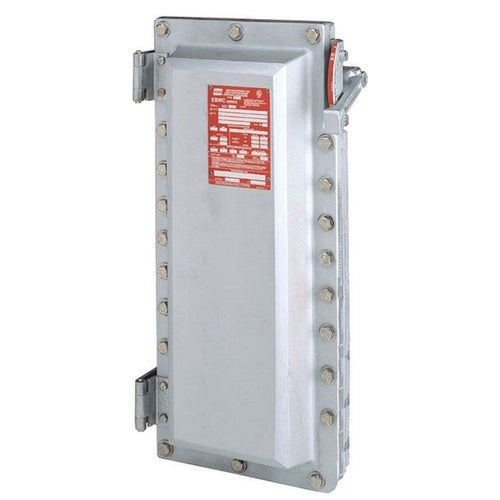

Crouse-Hinds EBMBK-WT400KD36 Circuit Breaker Encloure

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EBMB CIRCUIT BREAKER, 100A THROUGH 400A, KD FRAME TYPE, BOLTED/GROUND JOINT/GASKETED COVER CONSTRUCTION, COPPER-FREE ALUMINUM, 400A FRAME SIZE, CUTLER-HAMMER BREAKER, THREE-POLE, 400A TRIP, 600 VAC/250 VDC
• Full Technical Description: Bolted Enclosure Type; Copper Free Aluminum Enclosure Material; 600 Vac/250 VDC Voltage Rating; NEMA 3/3R/4/7B/7C/7D/9E/9F/9G/12, Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 65000 Ampere at 240 VAC, 35000 Ampere at 480 VAC, 25000 Ampere at 600 VAC Interrupting Rating; 400 Ampere Current Rating; 3 Pole(S); Dust Ignition Proof, Explosion Proof, Rain Tight, Water Tight; Feed Through Hub Location; Kd, Westinghouse Breaker Type; Interchangeable, Thermal Magnetic Trip Type; Copper Free Aluminum Handle, Stainless Steel Shaft Shaft/Handle Material; EBM[T], CROUSE-HINDS[R] Brand; Applicable Standard Nema/Eemac, Nec/Cec; EBMB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Enclosed Circuit Breaker
• Unspsc: 39121601
• UPC 12 Digit: 782274731551
• SKU Name: crsh ebmbkwt400kd36

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
