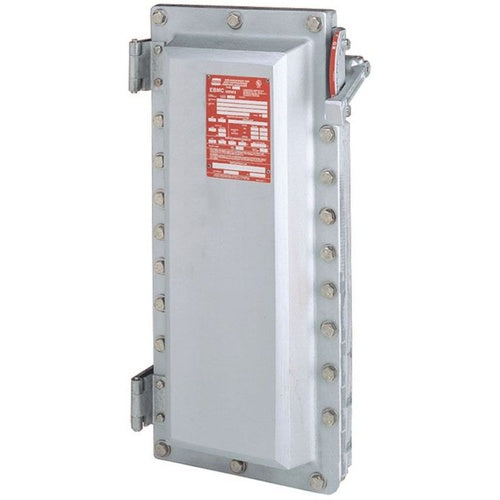

Crouse-Hinds EBMBL 1000A Breaker Encloure

Overview

Crouse-Hinds EBMBL 1000A Breaker Encloure

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EBMB CIRCUIT BREAKER ENCLOSURE, 250A THROUGH 800A, WITHOUT CIRCUIT BREAKER, BOLTED/GROUND JOINT/GASKETED COVER CONSTRUCTION, COPPER-FREE ALUMINUM
• Full Technical Description: Dust-Ignitionproof, Explosionproof, Raintight, Watertight, Wet Location Type; Copper Free Cast Aluminum Material; Natural Finish; Ebmb Series Circuit Breaker Used on; UL 1203 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/3R/4/4X/7B/7C/7D/9E/9F/9G/12 Enclosure; 3 Breaker Pole(S); 600 VAC, 250 VDC Breaker Voltage Rating; 125 to 800 Ampere Breaker Current Rating; Applicable Standard Nec/Cec, Nema/Eemac; Size 20.58 Inch W X 13.13 Inch D X 53.28 Inch H
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Circuit Breaker Enclosure
• Unspsc: 39121601
• UPC 12 Digit: 782274441764
• SKU Name: crsh ebmbl

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
