Crouse-Hinds eds11273

Overview

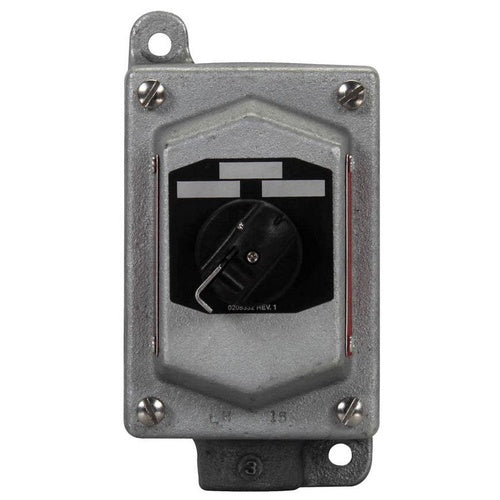

Crouse-Hinds FlexStationTM EDS11273 1-Gang Dead End Factory Sealed Heavy Duty Selector Switch Control Station, 600 VAC, 4NO-2NC Contact, 3/7B/7C/7D/9E/9F/9G NEMA Rating

Product Specifications

• Catalog Number: EDS11273
• UPC / GTIN: 782274764450
• Manufacturer Brand: Eaton Crouse-Hinds series
• UNSPSC: 39122217
• Features: Factory sealed enclosures are used to prevent arcing of enclosed device from causing ignition of a hazardous atmosphere external to the enclosure, in conjunction with magnetic starters or contactors for remote control of motors; Reduce installation problem; Eliminate external seals; Lower installation cost; Improve safety; Are used with general purpose snap and pushbutton type switches; Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts; Mounting lugs and taper tapped hubs with integral bushing; Large machine screws for fastening covers to bodies; Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and selector switch covers
• Contact Configuration: 4NO-2NC
• Contact Mode: Maintained
• Country of Origin: Mexico
• Dimensions: 5-7/8 in L x 3-1/2 in W x 3-1/16 in H
• Finish: Electro-Galvanized/Aluminum Acrylic Painted
• Material: Feraloy® Iron Alloy
• NEMA Rating: 3/7B/7C/7D/9E/9F/9G
• Operator Type: Front
• Series: EDS
• Type: 1-Gang Dead End Factory Sealed Heavy Duty
• Voltage Rating: 600 V AC | 600 VAC
