Crouse-Hinds edsc2162

Overview

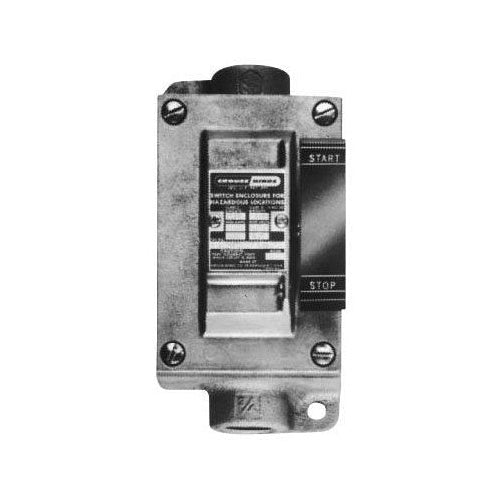

Crouse-Hinds FlexStationTM EDSC2162 1-Gang Factory Sealed Feed-Through Heavy Duty Pushbutton Control Station, 600 VAC, 1NO-1NC Contact, 4 Operators, 3/7B/7C/7D/9E/9F/9G NEMA Rating

Product Specifications

• Catalog Number: EDSC2162
• UPC / GTIN: 782274765662
• Manufacturer Brand: Eaton Crouse-Hinds series
• UNSPSC: 39122216
• Features: Reduce installation problem; Eliminate external seals; Lower installation cost; Improve safety; Are used with general purpose snap and pushbutton type switches; Standard neoprene covers for front operated pushbuttons prevents accumulation of dirt and entrance of water around operating shafts; Mounting lugs and taper tapped hubs with integral bushing; Large machine screws for fastening covers to bodies; Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and all selector switch covers; Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
• Actuator: Rocker
• Connection Type: Thread
• Contact Configuration: 1NC-1NO | 1NO-1NC
• Country of Origin: Mexico
• Dimensions: 5-7/8 in L x 3-1/2 in W x 3-1/16 in H
• Finish: Natural
• Legend: STOP/START
• Material: Feraloy® Iron Alloy
• Mounting Type: Surface
• NEMA Rating: 3/7B/7C/7D/9E/9F/9G
• Number of Operators: 4
• Operator Type: Front Operated Button
• Series: EDS
• Type: 1-Gang Factory Sealed Feed-Through Heavy Duty
• Voltage Rating: 600 V AC | 600 VAC
