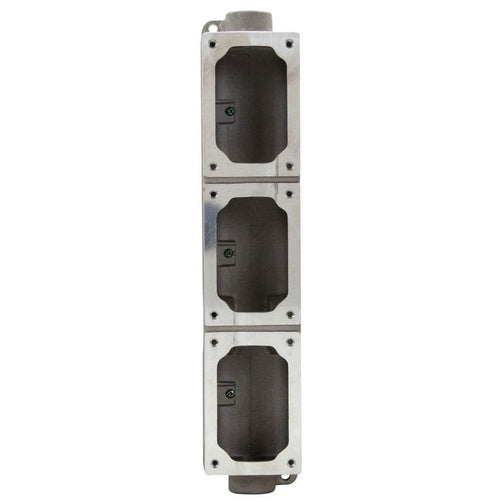

Crouse-Hinds EDSCM33 3G Alum Enclosure Unassem

Overview

Crouse-Hinds EDSCM33 3G Alum Enclosure Unassem

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EDSCM MODULAR CONTROL DEVICE BODY, WITH TWO 1" HUBS AND TWO 1-1/4" HUBS, COPPER-FREE ALUMINUM, THREE-GANG TANDEM, THROUGH FEED, 1", DSD DEVICE COVER SUB-ASSEMBLIES
• Full Technical Description: Feed Through Type; Natural Finished Copper Free Aluminum Body/Cover Material; 3-1/2 Inch W X 3-5/16 Inch D X 17-23/32 Inch H Size; Eds/Efs Series Control Station Used on; 1 Inch Hub Size; 2 Hub(S); 3 Gang(S); UL 1203, CSA C22.2 Approval; Feet Mounting; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure; Deep, Tandem Construction; Application Wet Location; Constructional Feature Dustproof, Explosionproof, Ignitionproof, Raintight; EDS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39122209
• UPC 12 Digit: 782274780948
• SKU Name: crsh edscm33unassembled

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
