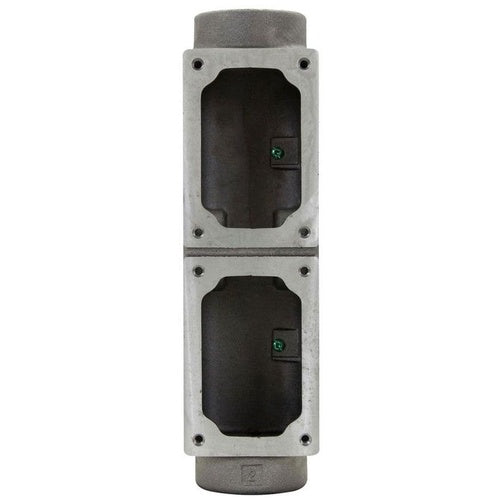

Crouse-Hinds EDSCM62 2" 2-Gang Device Body

Overview

Crouse-Hinds EDSCM62 2" 2-Gang Device Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EDSCM MODULAR CONTROL DEVICE BODY, WITH TWO 2" HUBS AND TWO 1-1/4" HUBS, COPPER-FREE ALUMINUM, TWO-GANG TANDEM, THROUGH FEED, 2", DSD DEVICE COVER SUB-ASSEMBLIES
• Full Technical Description: Feed Through Type; Natural Finished Copper Free Aluminum Body/Cover Material; 3-1/2 Inch W X 3-5/16 Inch D X 12-5/8 Inch H Size; Eds/Efs Series Control Station Used on; 2 Inch Hub Size; 2 Hub(S); 2 Gang(S); UL 1203, CSA C22.2 Approval; Feet Mounting; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure; Deep, Tandem Construction; Application Wet Location; Constructional Feature Dustproof, Explosionproof, Ignitionproof, Raintight; EDS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39122209
• UPC 12 Digit: 782274780955
• SKU Name: crsh edscm62

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
