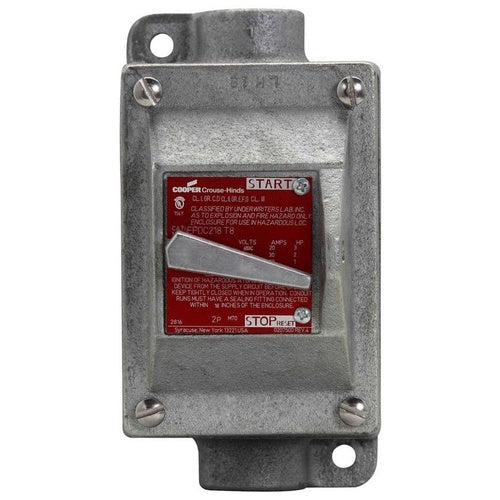

Crouse-Hinds EFDC218-T8 Enclosure W/2P Switch

Overview

Crouse-Hinds EFDC218-T8 Enclosure W/2P Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EFD MANUAL MOTOR STARTER SWITCH, 20A/30A, WITH SWITCH, 1 HP/2 HP/3 HP, SQUARE D STARTER, FERALOY IRON ALLOY, SINGLE-GANG, TWO-POLE, THROUGH FEED, 3/4", 250/600 VAC
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body/Cover), Black Natural Finished Nylon 6/6 (Handle), Natural Finished Stainless Steel (Shaft) Material; 6-3/32 Inch L X 3-1/2 Inch W X 4-7/8 Inch D Size; 2-Pole Operation Type; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/12/9E/9F/9G/12 Enclosure; Applicable Standard NEC, CEC, Nema/Eemac; Box Type Single Gang; Hub Size 3/4 Inch; EFD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Motor Starting Switch
• Unspsc: 39121521
• UPC 12 Digit: 782274271903
• SKU Name: crsh efdc218t8

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
