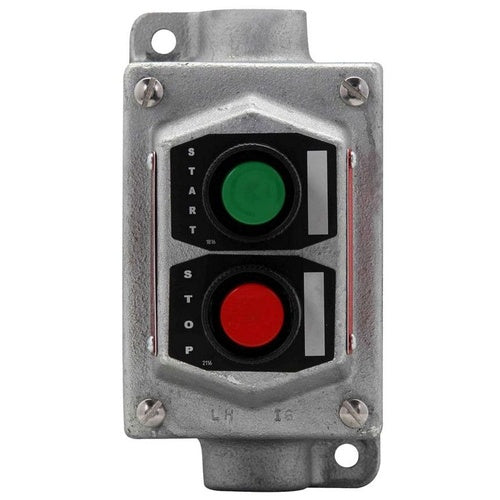

Crouse-Hinds EFSC215 Manual Motor Starter Switch

Overview

Crouse-Hinds EFSC215 Manual Motor Starter Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EFS PUSHBUTTON CONTROL STATION, WITH PUSHBUTTONS, TWO 3/4" HUBS, FERALOY IRON ALLOY, TWO CIRCUIT, 2, 2, SINGLE-GANG, 2, THROUGH FEED, 3/4", 600 VAC
• Full Technical Description: Feed-Through Type; 2NO-2NC Contact Configuration; 3/4 Inch Hub Size; Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy Enclosure Material; UL 1203, CSA C22.2 Approval; 600 VAC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F9G Enclosure; Start-Stop Legend; Explosionproof, Dust-Ignitionproof, Raintight, Wet Location; Front Operated Button Operator Type; 2 Circuit(S); Includes Neoprene Cover; EFSC Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39122216
• UPC 12 Digit: 782274290607
• SKU Name: crsh efsc215

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
