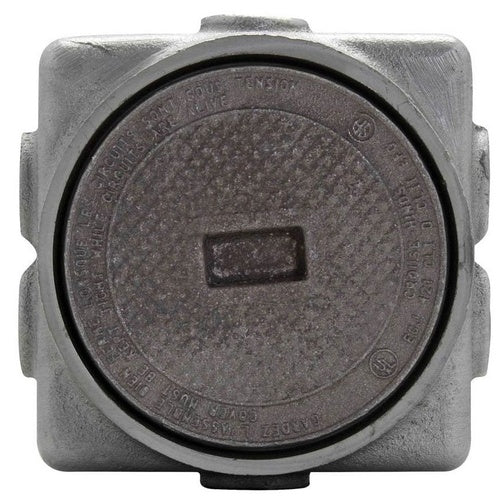

Crouse-Hinds EGJ421 3/4" Junction Box

Overview

Crouse-Hinds EGJ421 3/4" Junction Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EGJ JUNCTION BOX, 3/4" BACK HUBS, 4-3/16" DEPTH, FERALOY IRON ALLOY, 2 BACK HUBS, 6 SIDE HUBS, 3/4" SIDE HUBS
• Full Technical Description: 5-3/4 Inch L X 5-3/4 Inch W X 4-3/16 Inch D Overall Size; (6) 3/4 Inch Side, (2) 3/4 Inch Back Hub Size; 8 Hub(S); UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III Enclosure; Feraloy Iron Alloy Body Material; Copper Free Aluminum Cover Material; (6) Side, (2) Back Hub Location; Electrogalvanized Aluminum Acrylic Painted Body Finish; Natural Cover Finish; Constructional Feature Dustproof, Explosionproof, Ignitionproof; EGJ Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 782274300603
• SKU Name: crsh egj421
