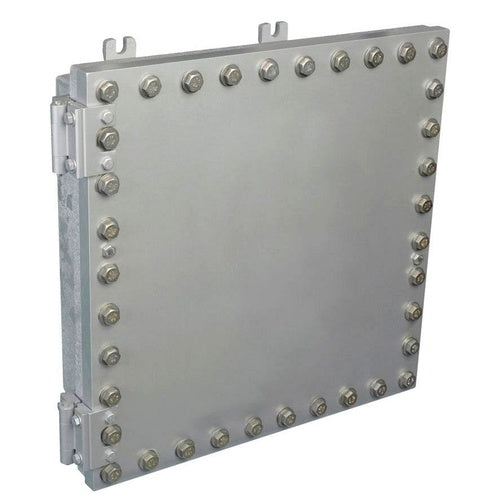

Crouse-Hinds EJB161608 Alum Junction Box

Overview

Crouse-Hinds EJB161608 Alum Junction Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EJB JUNCTION BOX, 16" X 16" X 8", WITHOUT HINGE, COPPER-FREE ALUMINUM, STYLE C
• Full Technical Description: 21-3/16 Inch L X 21-3/16 Inch W X 10-7/8 Inch D Overall Size; 16 Inch L X 16 Inch W X 8 Inch D Inner Size; UL 1203, CSA C22.2 Approval; Feet Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/4X/7/9, IP66 Enclosure; Bolt-on, Hinged Cover Type; Copper Free Aluminum Body Material; Copper Free Aluminum Cover Material; Natural Body Finish; Natural Cover Finish; Applicable Standard IEC, CEC, NEC, En 60079-0, En 60079-1 ; Material Neoprene (Gasket), Stainless Steel (Hinge); Style C; Constructional Feature Explosionproof, Dust-Ignitionproof, Raintight; Application Wet Location; EJB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 782274017709
• SKU Name: crsh ejb161608

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
