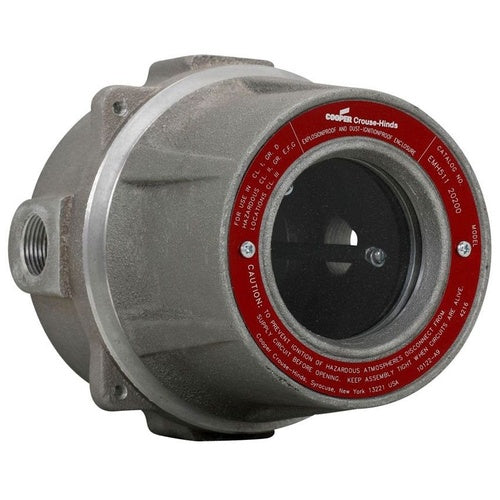

Crouse-Hinds EMH521-20200 Instrument Housing

Overview

Crouse-Hinds EMH521-20200 Instrument Housing

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EMH INSTRUMENT HOUSING, 2 CONDUIT OPENINGS, COPPER-FREE ALUMINUM, SURFACE MOUNT, THROUGH FEED, 3/4", USED WITH SELECT WESTON, WESTINGHOUSE AND SIMPSON METERS
• Full Technical Description: Surface Mount Type; 5-3/4 Inch W X 5-11/16 Inch D X 5-3/4 Inch H Size; 125/135/145/155/201/3222/3282 Series 2-1/2 Inch, 25/35/N-351/45/55/75/301/3223/3283 Series 3-1/2 Inch Round Flush Meter Used on; 3/4 Inch Hub Size; 4 Hub(S); UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7D/9E/9F/9G/12 Enclosure; Glass Window Cover Type; Copper Free Aluminum Body Material; Dust-Ignitionproof, Explosionproof, Raintight; (4) Lugs Mounting Hardware; Natural Finished Copper Free Aluminum Cover Material; Feed Through, Dead End Hub Location; Natural Body Finish; Applicable Standard NEC, CEC, Nema/Eemac; Cover Opening Size 4-5/8 Inch; EMH Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121331
• UPC 12 Digit: 782274310206
• SKU Name: crsh emh52120200

Resources

• Manufacturer Spec Sheet
