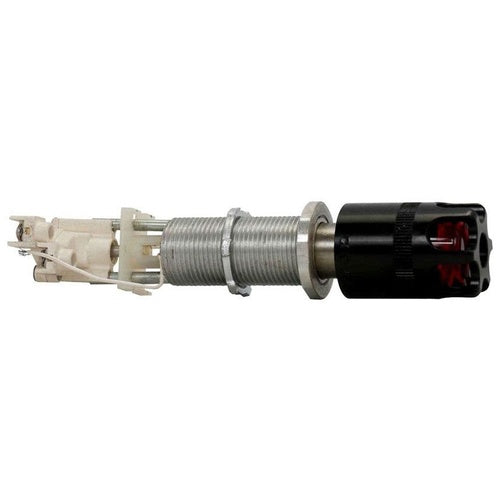

Crouse-Hinds EMP0090-J1 Push Button

Overview

Crouse-Hinds EMP0090-J1 Push Button

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EMP ILLUMINATED PUSHBUTTON OPERATOR, RED, ONE NORMALLY OPEN, ONE NORMALLY CLOSED, 120 VAC
• Full Technical Description: Long Barrel Type; 3/4 Inch-14 TPI NPSM Size; 1NO-1NC Contact Configuration; 600 VAC Contact Rating; UL 698, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 7B/7C/7D/9E/9F/9G/12 Enclosure; Copper Free Aluminum Body Material; Incandescent Lamp Type; Dust Ignition Proof, Explosion Proof, Rain Tight; 120 V Lamp Input Type; Red Cap/Lens Color; CROUSE-HINDS[R] Brand; EMP Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Illuminated Pushbutton Switch
• Unspsc: 39122216
• UPC 12 Digit: 782274785981
• SKU Name: crsh emp0090j1

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
