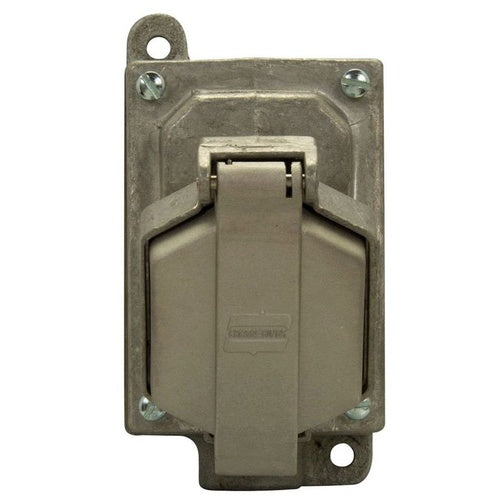

Crouse-Hinds ENR11202 1-Gang 20A-250V Receptacle

Overview

Crouse-Hinds ENR11202 1-Gang 20A-250V Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARK-GARD ENR VALUE RECEPTACLE ASSEMBLY, 20A, SINGLE, 50-400 HZ, COPPER-FREE ALUMINUM, 6-20R, SINGLE-GANG, DEAD END, 1/2", 250 VAC
• Full Technical Description: Dead End Type; 1/2 Inch Hub Size; UL, CSA Approval; 250 V Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/7B/7C/7D/9F/9G/12 Enclosure; 20 Ampere Current Rating; Hinged, Spring Cover Type; Single Gang Box Type; Enp Mating Plug; Ark GARD[R] Brand; Application Compressor, Lighting, Damp/Corrosive/Wet Location; Constructional Feature Explosionproof, Dust-Ignitionproof, Raintight; Receptacle Housing Material Die-Cast Copper Free Aluminum; ENR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 782274310985
• SKU Name: crsh enr11202

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
