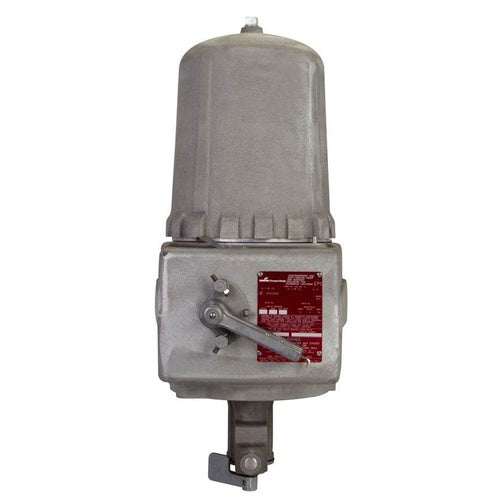

Crouse-Hinds EPC43042-WT50-3 30A Circuit Breaker

Overview

Crouse-Hinds EPC43042-WT50-3 30A Circuit Breaker

Product Specifications

• Full Technical Description: 1-1/4 Inch Hub Size; Copper Free Aluminum Enclosure Material; UL 1010 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/4/7C/7D/9F/9G/12 Enclosure; Explosionproof, Dust-Ignitionproof, Raintight; Natural Enclosure Finish; Ehd Breaker Type; Shell, Extra Pole Grounding Style; 3 Breaker Pole(S); 480 VAC, 250 VDC Breaker Voltage Rating; 50 Ampere Breaker Current Rating; 30 Ampere Receptacle Current Rating; 600 VAC Receptacle Voltage Rating; 4-Pole 3-Wire Receptacle Configuration; ARKTITE[R] Brand; Applicable Standard ANSI, NEC, CEC; Door Type Spring; Application Wet Location; Material Natural Finished Copper Free Aluminum (Handle), Stainless Steel (Shaft); EPC Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin and Sleeve Receptacle with Circuit Breaker
• UPC 12 Digit: 782274024837
• SKU Name: crsh epc43042wt503

Resources

• Manufacturer Spec Sheet
