Crouse-Hinds EPC46042-WT50-3 60A Circuit Breaker

Overview

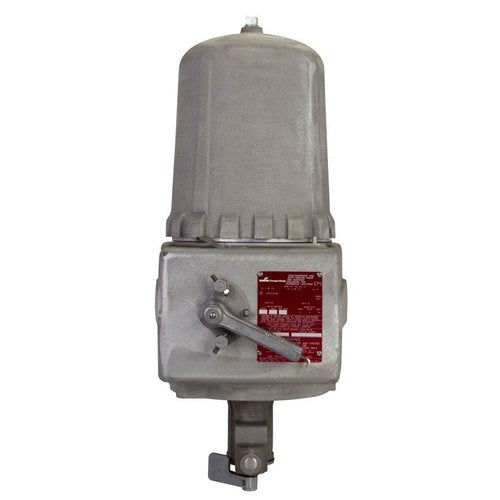

Crouse-Hinds EPC46042-WT50-3 60A Circuit Breaker

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE EPC INTERLOCKED RECEPTACLE, 60A, 50A CIRCUIT BREAKER, 3-WIRE, 4-POLE, WITH BREAKER, 100A FRAME, STYLE 2, CUTLER-HAMMER, COPPER-FREE ALUM, SPRING DOOR, 1-1/4", NON-INTERCHANGEABLE TRIP, 480 VAC/250 VDC
• Full Technical Description: 1-1/4 Inch Hub Size; Copper-Free Aluminum Enclosure Material; UL 1010 Approval; Class I Div 1 and 2 Group C/D, Class II Div 1 and 2 Group F/G, Class III, NEMA 3/7C/7D/9F/9G/12 Enclosure; Explosionproof, Dust Ignitionproof, Raintight; Natural Enclosure Finish; Ehd Breaker Type; Extra Pole, 2 Grounding Style; 3 Breaker Pole(S); 480 Volt AC, 250 Volt DC Breaker Voltage Rating; 50 Amp Breaker Current Rating; Apj/Npj Mating Plug; 60 Amp Receptacle Current Rating; 600 Volt AC Receptacle Voltage Rating; 4-Pole 3-Wire Receptacle Configuration; ARKTITE[R] Brand; Material Natural Copper Free Aluminum (Handle), Natural Stainless Steel (Shaft); Includes Thermal Magnetic Circuit Breaker With Non-Interchangeable Thermal Trip and Non-Adjustable Magnetic Trip, Spring Door; Application Wet Location; Applicable Standard ANSI, NEC, CEC
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin and Sleeve Receptacle with Circuit Breaker
• Unspsc: 39121406
• UPC 12 Digit: 782274025155
• SKU Name: crsh epc46042wt503

Resources

• Manufacturer Spec Sheet
