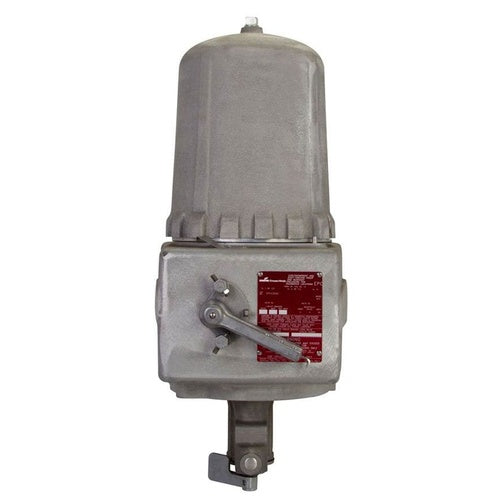

Crouse-Hinds EPC61042-WT100-3 3P100 Circuit Breaker & Receptacle

Overview

Crouse-Hinds EPC61042-WT100-3 3P100 Circuit Breaker & Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE EPC INTERLOCKED RECEPTACLE, 100A, 100A CIRCUIT BREAKER, 3-WIRE, 4-POLE, WITH BREAKER, 100A FRAME, STYLE 2, CUTLER-HAMMER, COPPER-FREE ALUM, SPRING DOOR, 2", NON-INTERCHANGEABLE TRIP, 480 VAC/250 VDC
• Full Technical Description: 12-13/16 Inch W X 14-3/8 Inch D X 25-1/4 Inch H Size; 2 Inch Hub Size; Copper Free Aluminum Enclosure Material; UL 1010 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/7C/7D/9F/9G/12 Enclosure; Explosion Proof, Dust Ignition Proof, Rain Tight; Natural Enclosure Finish; Extra Pole Grounding Style; 3 Breaker Pole(S); 480 Vac/250 VDC Breaker Voltage Rating; 100 Ampere Breaker Current Rating; Apj, Cph, Npj Mating Plug; 100 Ampere Receptacle Current Rating; 4 Pole 3 Wire Receptacle Configuration; CROUSE-HINDS[R] Brand; Applicable Standard CEC, NEC; EPC Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin And Sleeve Receptacle With Circuit Breaker
• Unspsc: 39121406
• UPC 12 Digit: 782274025537
• SKU Name: crsh epc61042wt1003

Resources

• Manufacturer Spec Sheet
