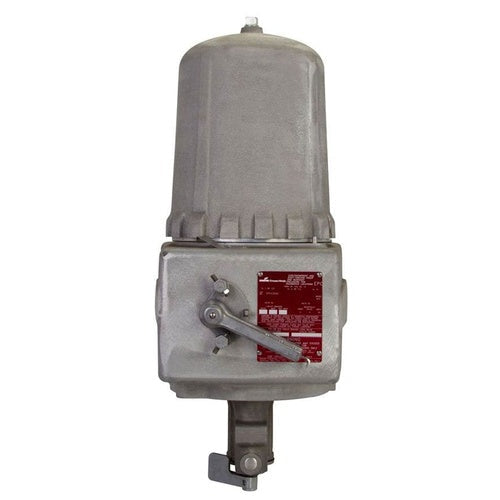

Crouse-Hinds EPC66042-WT60-3 60A Circuit Breaker/Enclosure

Overview

Crouse-Hinds EPC66042-WT60-3 60A Circuit Breaker/Enclosure

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE EPC INTERLOCKED RECEPTACLE, 60A, 60A CIRCUIT BREAKER, 3-WIRE, 4-POLE, WITH BREAKER, 100A FRAME, STYLE 2, CUTLER-HAMMER, COPPER-FREE ALUM, SPRING DOOR, 2", NON-INTERCHANGEABLE TRIP, 480 VAC/250 VDC
• Full Technical Description: 1-1/4 Inch Hub Size; Copper Free Aluminum Enclosure Material; UL 1010 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/7C/7D/9F/9G/12 Enclosure; Explosionproof, Dust-Ignitionproof, Raintight; Natural Enclosure Finish; Extra Pole, 2 Grounding Style; 3 Breaker Pole(S); 480 VAC, 250 VDC Breaker Voltage Rating; 60 Ampere Breaker Current Rating; Apj, Cph, Npj Mating Plug; 60 Ampere Receptacle Current Rating; 4-Pole 3-Wire Receptacle Configuration; ARKTITE[R] Brand; Applicable Standard CEC, NEC; EPC Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pin and Sleeve Receptacle with Circuit Breaker
• Unspsc: 39121406
• UPC 12 Digit: 782274278193
• SKU Name: crsh epc66042wt603

Resources

• Manufacturer Spec Sheet
