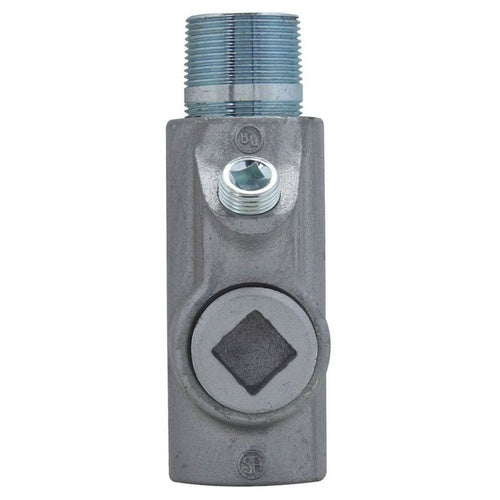

Crouse-Hinds EYS86-SA 3" Alum Conduit Seal

Overview

Crouse-Hinds EYS86-SA 3" Alum Conduit Seal

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EYS CONDUIT SEALING FITTING, MALE AND FEMALE, COPPER-FREE ALUMINUM, VERTICAL OR HORIZONTAL, 3"
• Full Technical Description: Hub Type; Copper Free Aluminum Material; Male, Female Connection Type; UL, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group F G, Class II Div 2 Group F G, Class III Enclosure; 3 Inch Trade Size; Vertical/Horizontal Mounting Position; 3-5/16 Inch Turning Radius; Constructional Feature Explosionproof, Dust-Ignitionproof; Material Feraloy Iron Alloy/Steel (Plug), Electrogalvanized Steel (Nipple); Internal Volume 56 Cu Inch (Vertical), 64-1/2 Cu Inch (Horizontal); Size 8-1/2 Inch H; EYS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 782274379814
• SKU Name: crsh eys86sa

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
