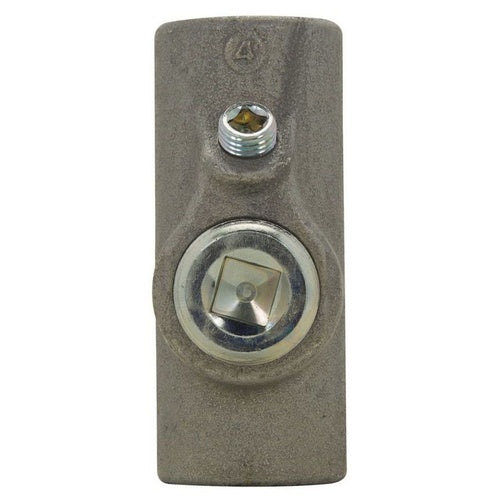

Crouse-Hinds EYSX3-SA 1" Alum Conduit Seal

Overview

Crouse-Hinds EYSX3-SA 1" Alum Conduit Seal

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EYSX EXPANDED FILL SEALING FITTING, FEMALE, COPPER-FREE ALUMINUM, VERTICAL OR HORIZONTAL, 1"
• Full Technical Description: Hub Type; Copper Free Aluminum Material; Female Connection Type; UL, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III Enclosure; 1 Inch Trade Size; Vertical/Horizontal Mounting Position; 1-23/32 Inch Turning Radius; Constructional Feature Explosionproof, Dust-Ignitionproof; Material Copper Free Aluminum (Closure); Internal Volume 6 Cu Inch (Vertical), 8 Cu Inch (Horizontal); Size 5-1/16 Inch H; EYSX Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 782274943190
• SKU Name: crsh eysx3sa

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
