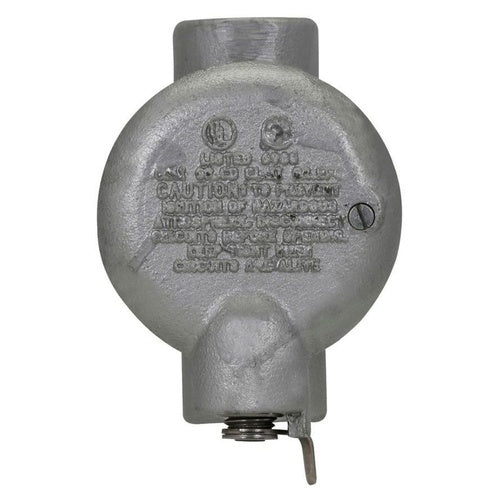

Crouse-Hinds EZD211 3/4" Drain Seal

Overview

Crouse-Hinds EZD211 3/4" Drain Seal

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EZD CONDUIT SEALING FITTING WITH DRAIN, FERALOY IRON ALLOY AND/OR DUCTILE IRON, INSPECTION COVER, 3/4"
• Full Technical Description: Drain, Hub Type; Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy/Ductile Iron Body/Cover Material; Female, Female Connection Type; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; 2-3/16 Inch Turning Radius; Constructional Feature Dustproof, Explosionproof, Ignitionproof; Material Copper Free Aluminum/Ductile Iron (Closure For Drain), Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy/Electrogalvanized Steel (Closure Plug), Stainless Steel (Drain), Electrogalvanized Steel (Nipple); Internal Volume 6 Cu Inch; Size 3 Inch W X 3-5/8 Inch D X 4-3/16 Inch H; EZD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 782274381107
• SKU Name: crsh ezd211

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
