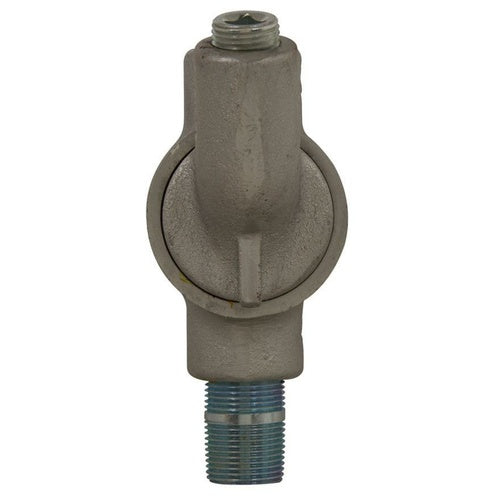

Crouse-Hinds EZS56 1-1/2" Female/Male Conduit Seal

Overview

Crouse-Hinds EZS56 1-1/2" Female/Male Conduit Seal

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES EZS CONDUIT SEALING FITTING, MALE AND FEMALE, FERALOY IRON ALLOY AND/OR DUCTILE IRON, ANY ANGLE, 1-1/2"
• Full Technical Description: Hub Type; Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy/Ductile Iron Material; Male, Female Connection Type; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/2 Inch Trade Size; Vertical/Horizontal Mounting Position; 2-11/32 Inch Turning Radius; Constructional Feature Dustproof, Explosionproof, Ignitionproof; Material Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy/Steel (Plug), Electrogalvanized Steel (Nipple); Internal Volume 14-1/2 Cu Inch (Vertical/Horizontal); Size 4-9/16 Inch W X 5-3/16 Inch H; EZS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 782274382807
• SKU Name: crsh ezs56
