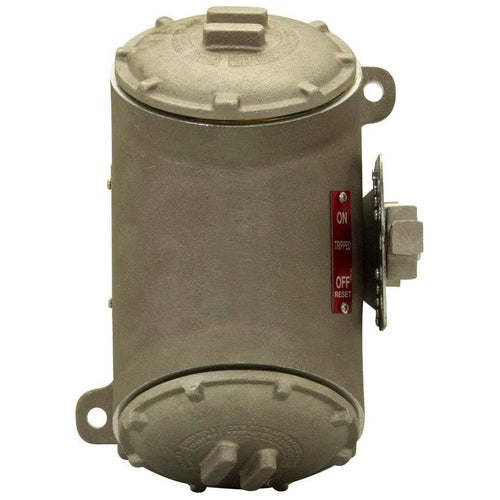

Crouse-Hinds FLB142 Enclosure Wo/Circuit Breaker

Overview

Crouse-Hinds FLB142 Enclosure Wo/Circuit Breaker

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES FLB CIRCUIT BREAKER ENCLOSURE, 70A THROUGH 100A, WITHOUT CIRCUIT BREAKER, THREADED COVER CONSTRUCTION, COPPER-FREE ALUMINUM, 1-1/2", 480 VAC/250 VDC
• Full Technical Description: Dust Ignition Proof, Explosion Proof, Rain Tight, Water Tight, Wet Location Type; Copper Free Aluminum Material; Natural Finish; Flb Series Thermal Magnetic Non Interchangeable Trip Circuit Breaker Used on; 1-1/2 Inch Hub Size; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; 3 Breaker Pole(S); 480 VAC, 250 VDC Breaker Voltage Rating; 70 to 100 Ampere Breaker Current Rating; CROUSE-HINDS[R] Brand; Applicable Standard Nec/Cec, Nema/Eemac; FLB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Circuit Breaker Enclosure
• Unspsc: 39121601
• UPC 12 Digit: 782274402505
• SKU Name: crsh flb142

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
