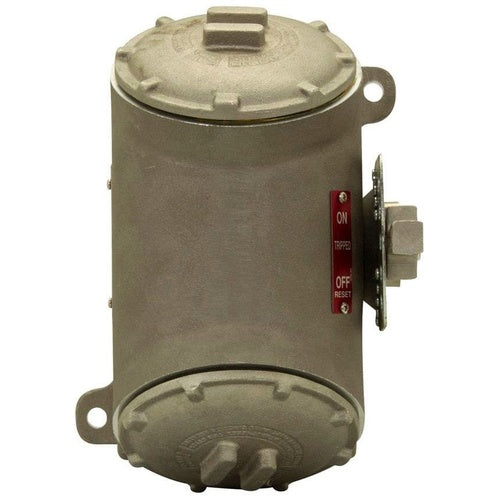

Crouse-Hinds FLB222-TT30-3 30A 240V Enclosed Circuit Breaker

Overview

Crouse-Hinds FLB222-TT30-3 30A 240V Enclosed Circuit Breaker

Product Specifications

• Full Technical Description: Threaded Enclosure Type; 1-1/4 Inch Hub Size; Copper Free Aluminum Enclosure Material; UL 698, CSA C22.2 Approval; 240 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; 30 Ampere Current Rating; 3 Pole(S); Dust-Ignitionproof, Explosionproof, Raintight, Watertight; Natural Enclosure Finish; Feed Through Hub Location; Teb, General Electric Breaker Type; Non-Interchangeable, Thermal Magnetic Trip Type; Natural Finished Copper Free Aluminum (Handle), Stainless Steel (Shaft) Shaft/Handle Material; Applicable Standard NEC, CEC, Nema/Eemac; Size 8-1/2 Inch W X 13-3/8 Inch H; FLB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Enclosed Circuit Breaker
• UPC 12 Digit: 782274012698
• SKU Name: crsh flb222tt303

Resources

• Manufacturer Spec Sheet
