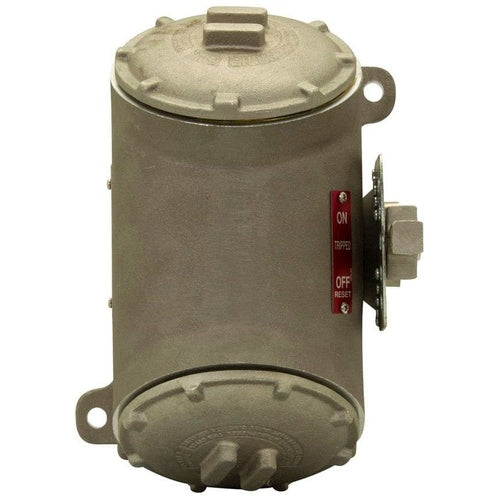

Crouse-Hinds FLB223-TT100-2 100A 240 Enclosed Circuit Breaker

Overview

Crouse-Hinds FLB223-TT100-2 100A 240 Enclosed Circuit Breaker

Product Specifications

• Full Technical Description: Threaded Enclosure Type; 1-1/2 Inch Hub Size; Copper Free Aluminum Enclosure Material; 240 Vac/125 to 250 VDC Voltage Rating; NEMA 3/4/7C/7D/9E/9F/9G, Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 10000 Ampere at 120/240 VAC Interrupting Rating; 100 Ampere Current Rating; 2 Pole(S); Dust Ignition Proof, Explosion Proof, Rain Tight, Water Tight; Natural Enclosure Finish; Feed Through Hub Location; Teb, General Electric Breaker Type; Non Interchangeable, Thermal Magnetic Trip Type; Natural Finished Copper Free Aluminum Handle, Stainless Steel Shaft Shaft/Handle Material; CROUSE-HINDS[R] Brand; Applicable Standard Nema/Eemac, Nec/Cec; FLB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Enclosed Circuit Breaker
• UPC 12 Digit: 782274012711
• SKU Name: crsh flb223tt1002

Resources

• Manufacturer Spec Sheet
